Drone legislation in Australia – operations within a 3 nautical mile radius of an aerodrome
Drone legislation in Australia can be difficult to navigate. Even as qualified drone pilots, we are always learning something new about how this legislation affects our drone services. Over the next few months I will post information on sections of the legislation and demystify any uncertainty, with the aim of helping other drone pilots avoid severe penalties for breaking these laws.
I am going to start with a basic section of the legislation that seems to create some uncertainty – operations within a 3 nautical mile (nm) radius of an aerodrome or helicopter landing site. By the way, 3nm is approximately 5.5km.
Check out CASA’s easy-to-use smartphone drone safety app “Can I fly there?” which illustrates where you’re not allowed to fly.
Here is some more technical information which further explains where you can and can’t fly.
Operations within 3nm of a Controlled Aerodrome
Drone legislation requires permission from the Civil Aviation Safety Authority (CASA) and Airservices Australia (Australia’s air navigation service provider) to operate a drone at or within 3nm of a controlled aerodrome. A controlled aerodrome is an aerodrome at which a control tower is operating. At the time of writing this, Airservices advised that it is unlikely to approve commercial drone operations within 3nm of a controlled aerodrome boundary due to current restrictions to the application of separation standards to drones and manned aircraft (planes, helicopters). Therefore, any operations within 3nm of a controlled aerodrome are considered illegal.
Operations within 3nm of a Non-Controlled Aerodrome and Helicopter Landing Site (without instrument approach)
A non-controlled aerodrome means an aerodrome at which Air Traffic Control (ATC) is not operating. This can be one of the following:
- an aerodrome that is always in Class G airspace (Refer to Figure 1);
- an aerodrome with a control tower where no ATC service is currently provided; or
- an aerodrome that would normally have ATC services but such services are temporarily unavailable

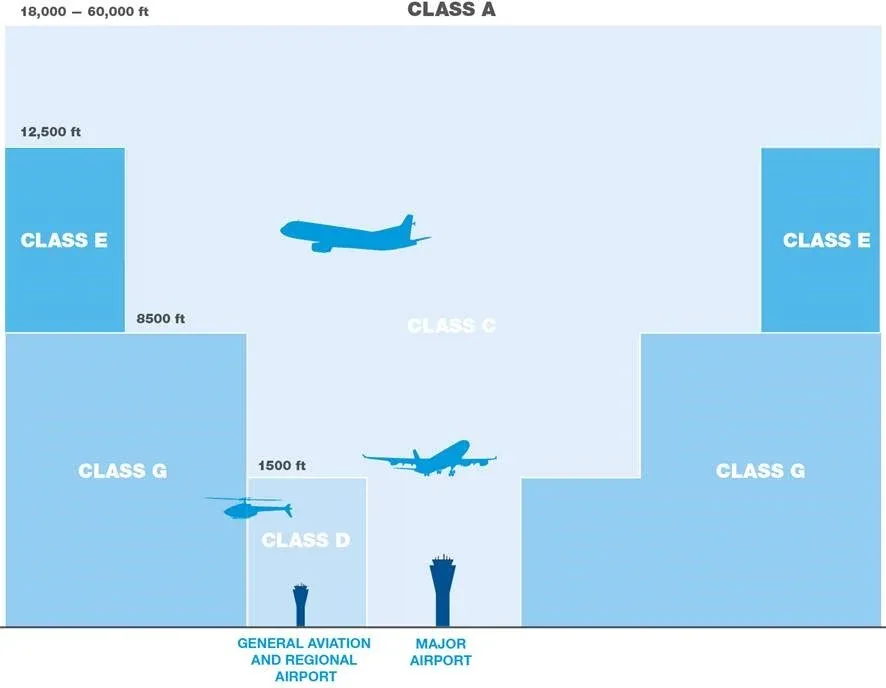

Figure 1. Class G airspace is airspace that is uncontrolled. Both visual flight rules (VFR) or instrument flight rules (IFR) aircraft are permitted and neither require Air Traffic Control (ATC) clearance.
Operations within a 3nm radius of a non-controlled aerodrome or a helicopter landing site (HLS) without instrument approach is possible and lawful providing a licensed and/or certified drone pilot does not operate:
- on the Final Approach and Take-off Area (FATO); or
- within the Movement Area; or
- create a hazard to aircraft that may be using those areas.
The above terms are explained in a little more detail below.

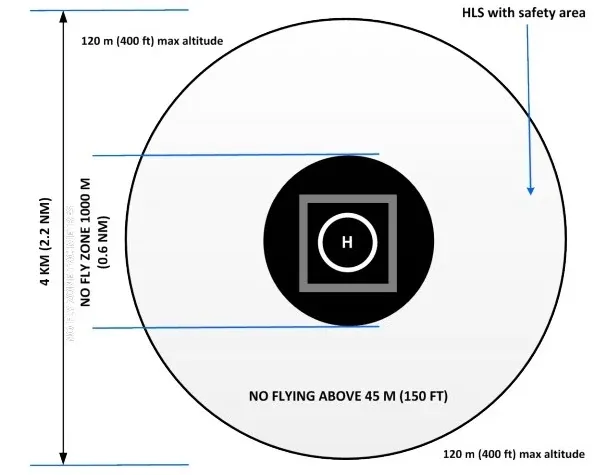

The final approach and take-off area in relation to an HLS, is the area of land (or water) over which the final phase of the approach to a hover or landing is completed and from which the take-off manoeuvre is commenced. Figure 2 shows the approach and departure paths for non-instrument HLS. Drones are not to be flown in areas shaded black and not above 45 m/150 ft (based on the HLS elevation) in the grey-shaded area. Licensed pilots and certified operators may operate in the black area and above 45m/150 ft in the grey area provided they have, and comply with, a CASA approval for this purpose.
Figure 2. Approach and departure paths for non-instrument HLS.

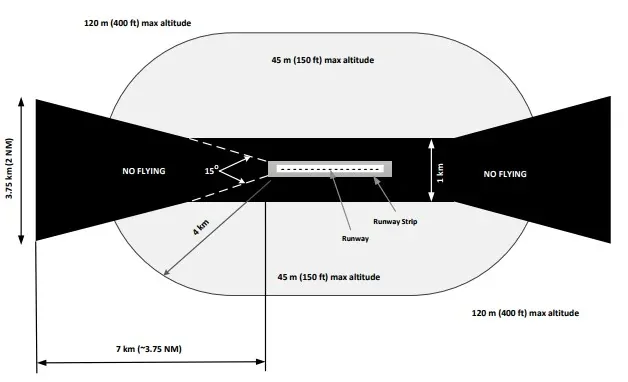

The approach and departure paths for a non-controlled aerodrome are shown in Figure 3. Drones are not to be flown in areas shaded black and are not to be flown above 45 m/150 ft (based on the aerodrome elevation) in the 4 km grey-shaded racetrack-shaped area. Licensed pilots and certified operators may operate in the black area and above 45m/150 ft in the grey area.
Figure 3. Approach and departure paths for a non-controlled aerodrome
Operations within 3nm of a Helicopter Landing Site with Instrument Approach
Unless otherwise approved by CASA, a 3nm exclusion zone applies to instrument HLS. Licensed pilots and certified operators may operate within this area provided they have, and comply with, a CASA approval for this purpose.
The following HLS have instrument approaches:
- Charlie
- Facing Island
- Gosford District Hospital
- Lithgow Medical
- Maclean Hospital
- Merriwa Hospital
- Mossman Hospital
- Newcastle Westpac Base
- Seabuoy
- Tully Hospital
- Victor Island East
- Victor Island West
- Westmead Hospital
- Wollongong Hospital
This type of operation may also require some form of approval from the controlling authority of that airspace. For example, the helicopter pilot and Base Manager for the Health Emergency and Aeromedical Services at Wollongong Hospital is the controlling authority for the Wollongong Hospital HLA.
Conclusion
With all commercial flights, it is important to monitor the common traffic advisory frequency (CTAF) which is the VHF radio frequency that is used for air-to-air communication for Australian non-towered airports.
It is also important to use a drone operator who has the training to understand the laws that regulate drone operations in Australia and with the skills, experience (and insurance) to operate safely within these laws.
The Civil Aviation Safety Regulations 1998 (CASR) Part 101 consolidates the rules governing all unmanned aeronautical activities into one body of legislation including drones, or remotely piloted aircraft (RPA), the term CASA uses. The full drone legislation can be found here.
Contact us if you require further information on our Drone Services or help with understanding the drone legislation and other requirements for your own operations.
Hi,
Where did you get your information on “Operations within 3nm of a Helicopter Landing Site with Instrument Approach”….
I have an RePL and work under an ReCO….. As far as I am aware the below link explains the circumstances when CASA permission to fly is required:
https://www.casa.gov.au/standard-page/get-permission-fly
Do I need to get permission from CASA to fly within 3nm of helipad with Instrument Approach?
Hi Dominik,
Thanks for your comment.
These rules refer to Excluded RPA – Unmanned aircraft that may, under certain conditions, be operated without an explicit authorisation from CASA.
Included RPA are RPA operations that requires authorisation in the form of a remotely piloted aircraft operator’s certificate (ReOC) and/or a remote pilot licence (RePL).
Unless otherwise approved by CASA, a 5.5 km (3 NM) exclusion zone applies to these HLS. Licensed pilots and certificated operators may operate within this area provided they have, and comply with, a CASA approval for this purpose. Appendix A.3 of the report (link below) lists HLS with instrument-guided approaches for which a full 5.5 km exclusion area applies at all heights.
https://www.casa.gov.au/file/171461/download?token=rD99831v
Hey, I’m just trying to get clarity on operating a >2kg drone within a 5.5km radius of the airport. Is there any height at all in which a unlicenced drone pilot can operate?
Hi Brendan,
If you want to fly commercially outside of the standard conditions or your drone weighs more than 2kg, you will need to be licensed and/or certified to fly.
The maximum operating height is 120 metres (400 feet) above ground level (AGL) in controlled airspace or outside an approved area unless permission has been given by CASA to fly above this height.
If you fly a drone under 2kg but for commercial reasons, you can fly your drone in what is called the ‘excluded’ category. This means you need to notify CASA before you fly and operate within the standard operating conditions including below 120 metres.
I hope this helps.
Regards,
Rylan
Hi Guys
Interesting one this.
The previous [ not in current ] ‘Advisory Circular’ for excluded RPA did include an Appendices list for the instrument guided HLS’s and noted an exclusion zone.
The current advisory circular doesn’t. Note that this is for excluded operations [ie. no RPA license].
As a licensed RPA Operator you fly in accordance with your approved Operations Manual. My understanding is that there are no special requirements for an instrument guided HLS other than undertake flight assessmenty, to treat it as an operational non controlled airfield, ie make radio call, monitor radio, land if any aircraft operating.
Also received advice from CASA and they stated it is to be treated as an uncontrolled airfield.
Anyone have any other comment would be interesting.
